A job well done starts with the right equipment. We invest in the highest quality tools and state-of-the-art equipment and make sure that our staff is well trained on how to use it.
Capabilities
- Waterjet cutting up to 12” Thick 120” x 240”
- Laser cutting up to 1” Thick 80” x 240”
- CNC Machining with 5-Axis Capability up to 64” x 32” x 30”
- CNC Brake Forming 7-Axis up to 150 Tons x 120”-
- Sheetmetal Fabrication of louvers, dimples, beads and hems
- Hardware Installation of rivets, nut plates, PEM style nuts, studs, HeilCoils, standoffs & pins
- AWS Certified Welding to D1.1, D1.3 and D1.7
- Finishing- #4 Brush Finish, #8 Mirror Polishing, Anodizing, Chem Film, Powder Coating, BR-127, Wet Paint & Hot Dip Galvanizing
- Fiber Laser Marking up to 8” x 8”
- Ink Stamping & Silk Screening
CNC Production Equipment
- (2) Haas ST20 Y Axis Lathe with bar feeders
- (2) Haas ST30 Y Axis Lathe with bar feeders
- (1) Haas VM6 Vertical Milling Machine with 64”x32”x30” machining envelope
- (4) Haas VF2SS Vertical Milling Machine with 30”x16”x20” machining envelope.
- (2) Haas VF3SS Vertical Milling Machine with 40”x20”x25” machining envelope.
- (2) Haas UMC-750 5-Axis Milling Machine with 20” X 20” X 30” machining envelope.
- (2) Haas UMC-500 5-Axis Milling Machine with 16” X 16” X 20” machining envelope.
- (2) Flow Waterjet with 72”x120” cutting envelope.*
- (1) Flow Waterjet with 80”x240” cutting envelope.*
- (7) Flow Waterjet with 80”x160” cutting envelope.*

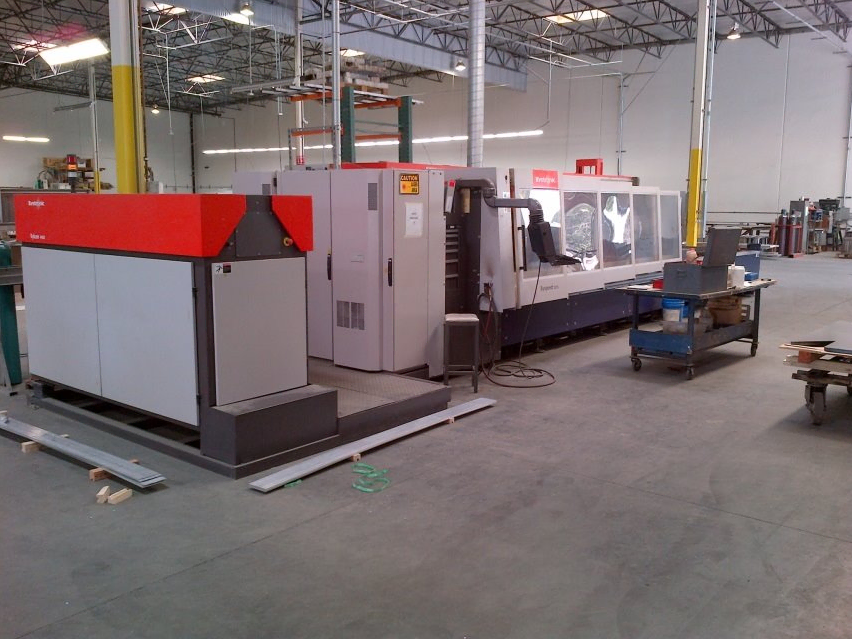

- (2) Bystronic Fiber Laser with 80” x 160” cutting envelope.
- (1) Bystronic Fiber Laser with 96”x240” cutting envelope.
- (1) Bystronic Laser with 60”x120” cutting envelope.
- (2) Triumph Fiber Laser Engraver
- (1) Amada HD 1303NT 150 TON 8 Axis x 120’’ CNC Press Break
- (2) Amada HD 8025NT 88 TON 7 Axis x 96” CNC Press Break
*All waterjet cutting machines are equipped with multiple cutting heads.
CNC Production Support Equipment
- (1) Haas HRT-160 rotary for 4th axis capabilities
- (1) Haas TR-160 trunnion rotary table for 5th axis capabilities
- (2) Bridgeport vertical mills
- (4) Miller Syncrowave TIG Welders
- (8) Miller MIG Welders
- (1) Janda 50 KVA Spot Welder
- (1) Pemserter hardware press
- (1) Timesaver rotary brush deburr conveyor
- (1) Timesaver line grainer
- (4) KMT 200 hp waterjet intensifiers
- (2) Kaeser 50hp rotary screw compressors
- (4) Caterpillar forklifts with 6,000 lb lifting capacity
- (1) Vibratory Tumble Deburr
